OMV\System\Filesystem\Backend\BackendAbstract Class Reference

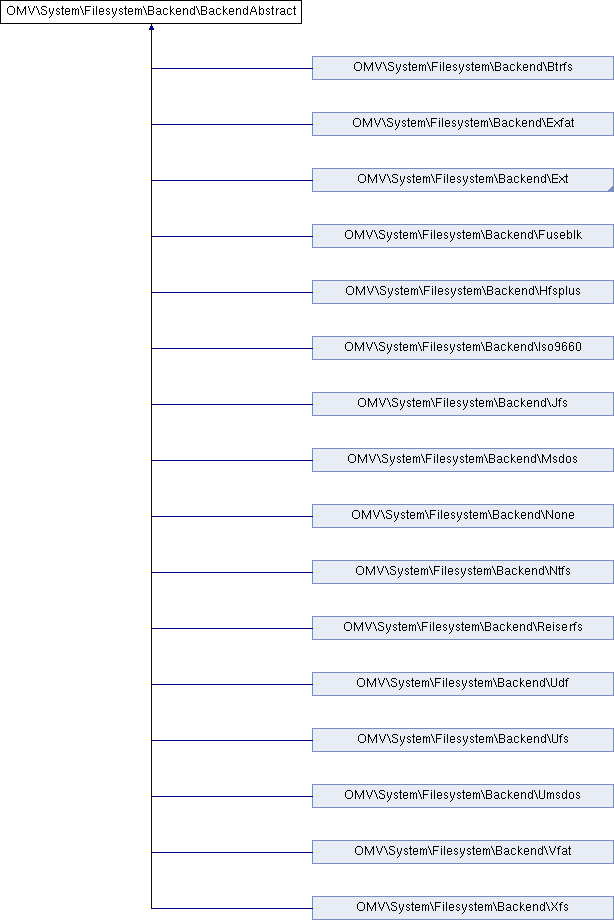

Inheritance diagram for OMV\System\Filesystem\Backend\BackendAbstract:

Public Member Functions
	getType ()
	enumerate ()
	isBlkidEnumerated ()
	isTypeOf ($id)
	getProperties ()
	hasProperty ($property)
	hasDiscardSupport ()
	hasPosixAclSupport ()
	hasFstabSupport ()
	hasQuotaSupport ()
	hasResizeSupport ()
	hasReadOnlySupport ()
	hasCompressSupport ()
	hasAutoDefragSupport ()
	hasDeviceFile ()
	getFstabMntOptions (\OMV\System\Storage\StorageDevice $sd=null)
	getMkfsOptions (\OMV\System\Storage\StorageDevice $sd=null)
	getImpl ($args)

Public Attributes
const	PROP_NONE = 0x0
const	PROP_MNTENT = 0x1
const	PROP_POSIX_ACL = 0x2
const	PROP_DISCARD = 0x4
const	PROP_QUOTA = 0x8
const	PROP_RESIZE = 0x10
const	PROP_READ_ONLY = 0x20
const	PROP_COMPRESS = 0x40
const	PROP_AUTO_DEFRAG = 0x80

Protected Attributes
	$type = ""
	$properties = self::PROP_NONE
	$mkfsOptions = ""
	$mntOptions = []

Detailed Description

The generic class that represents a filesystem backend.

Member Function Documentation

OMV\System\Filesystem\Backend\BackendAbstract::enumerate

(

)

Get a list of filesystem device files or identifiers that are managed by this filesystem backend. Override this method if the filesystem implemented by this backend is not identified by the block device identification library. This method is only called when the method isBlkidEnumerated returns FALSE.

Returns

An array of objects with the fields devicefile, uuid, label and type, otherwise FALSE.

OMV\System\Filesystem\Backend\BackendAbstract::getFstabMntOptions

(

\OMV\System\Storage\StorageDevice

$sd = null

)

Get filesystem mount options used in '/etc/fstab'. See http://linux.die.net/man/8/mount. If a storage device is given the result mount option list can contain specific options for the given storage device.

Parameters

sd	A optional storage device object. Defaults to NULL.

Returns

An array of 'mount' options.

OMV\System\Filesystem\Backend\BackendAbstract::getImpl

(

$args

)

Get the object of the class that represents and implements a filesystem of this filesystem backend.

Parameters

args	The arguments to the class constructor.

Returns

The object of the class implementing the given filesystem type.

OMV\System\Filesystem\Backend\BackendAbstract::getMkfsOptions

(

\OMV\System\Storage\StorageDevice

$sd = null

)

Get 'mkfs' command options used to create the filesystem. See http://linux.die.net/man/8/mkfs. If a storage device is given the result command option list can contain specific options for the given storage device.

Parameters

sd	A optional storage device object. Defaults to NULL.

Returns

An array of 'mkfs' options.

OMV\System\Filesystem\Backend\BackendAbstract::getProperties ( )

final

Get the filesystem properties.

Returns

The properties defined for this filesystem.

OMV\System\Filesystem\Backend\BackendAbstract::getType ( )

final

Get the type of the filesystem, e.g. 'ext3', 'vfat' or 'btrfs'.

OMV\System\Filesystem\Backend\BackendAbstract::hasAutoDefragSupport

(

)

Does the filesystem support auto defragmentation?

Returns

TRUE if the filesystem supports auto-defrag, otherwise FALSE.

OMV\System\Filesystem\Backend\BackendAbstract::hasCompressSupport

(

)

Does the filesystem support compression?

Returns

TRUE if the filesystem supports compression, otherwise FALSE.

OMV\System\Filesystem\Backend\BackendAbstract::hasDeviceFile

(

)

Does the filesystem have a device file? E.g. union mount or overlay file systems like UnionFS, aufs or mhddfs do not have such a device file.

Returns

TRUE if the filesystem has a device file, otherwise FALSE.

OMV\System\Filesystem\Backend\BackendAbstract::hasDiscardSupport

(

)

Check whether the filesystem supports the discard/TRIM commands to the underlying block device when blocks are freed. See https://wiki.archlinux.org/index.php/Solid_State_Drives#TRIM.

Returns

TRUE if the filesystem supports the discard/TRIM commands, otherwise FALSE.

OMV\System\Filesystem\Backend\BackendAbstract::hasFstabSupport

(

)

Is the filesystem mounted via /etc/fstab?

Returns

TRUE if the filesystem is mounted via '/etc/fstab', otherwise FALSE.

OMV\System\Filesystem\Backend\BackendAbstract::hasPosixAclSupport

(

)

Does the filesystem support POSIX ACL.

See also

http://de.wikipedia.org/wiki/Access_Control_List

http://www.suse.de/~agruen/acl/linux-acls/online

Returns

TRUE if the filesystem supports POSIX ACL, otherwise FALSE.

OMV\System\Filesystem\Backend\BackendAbstract::hasProperty (   $property )

final

Check whether the filesystem has the given property.

Parameters

property

The property to check for, e.g. PROP_POSIX_ACL.

Returns

TRUE if the given property is set, otherwise FALSE.

OMV\System\Filesystem\Backend\BackendAbstract::hasQuotaSupport

(

)

Does the filesystem support disc quota?

Returns

TRUE if the filesystem supports disc quota, otherwise FALSE.

OMV\System\Filesystem\Backend\BackendAbstract::hasReadOnlySupport

(

)

Is the filesystem read-only, e.g. ISO9660?

Returns

TRUE if the filesystem is read-only, otherwise FALSE.

OMV\System\Filesystem\Backend\BackendAbstract::hasResizeSupport

(

)

Does the filesystem support the capability to resize it online?

See also

http://wiki.ubuntuusers.de/Dateisystemgr%C3%B6%C3%9Fe_%C3%A4ndern

Returns

TRUE if the filesystem supports online resizing, otherwise FALSE.

OMV\System\Filesystem\Backend\BackendAbstract::isBlkidEnumerated

(

)

Check whether the filesystem implemented by this backend is identified by the block device identification library. If this is not the case, then the backend must override the enumerate method.

Returns

TRUE if the filesystem is identified by the block device identification library, otherwise FALSE.

OMV\System\Filesystem\Backend\BackendAbstract::isTypeOf

(

$id

)

Check whether the given filesystem identifier is represented by this filesystem backend.

Parameters

id

The filesystem identifier (e.g. UUID or device path), e.g. 78b669c1-9183-4ca3-a32c-80a4e2c61e2d (EXT2/3/4, JFS, XFS) 7A48-BA97 (FAT) 2ED43920D438EC29 (NTFS) /dev/sde1 /dev/disk/by-id/scsi-SATA_ST3200XXXX2AS_5XWXXXR6-part1 /dev/disk/by-label/DATA /dev/disk/by-path/pci-0000:00:10.0-scsi-0:0:0:0-part2 /dev/disk/by-uuid/ad3ee177-777c-4ad3-8353-9562f85c0895 /dev/cciss/c0d0p2

Returns

TRUE if successful, otherwise FALSE.

Exceptions

---

The documentation for this class was generated from the following file:

• filesystem/backend/backendabstract.inc
